Versions
Platform: 2.12.0.20201027.16
Spartan: 7.19.1
Access: 3.2.9
Workflow SDK: 5.0.0.20201021.6
Release Notes
2.12.0 Release Highlights
- With this release, the Administration information has been added to this guide so that users have all Access information in one guide. Updated documentation available here.
- For video assets, more information has been added to the Asset Info tab for faster access to important information. This includes all the detail about an Asset's underlying content (Source, Mezzanine, Proxy, etc).
- Administrators can manage watch folders through the user interface. Additionally, Reach Engine will automatically migrate existing watch folders. With this update, Reach Engine does not need to be restarted when adding new watch folders or modifying existing.
- Administrators can create new and modify scheduled workflows through the user interface. Context data can be assigned to scheduled workflows using the +Data Def fields. Reach Engine will automatically migrate existing scheduled workflows. With this update, Reach Engine does not need to be restarted when adding new schedules or modifying existing schedules.
- Administrators can configure Workflow Qualifier Expressions directly in the UI instead of in workflow XML, decreasing the time and complexity to adjust a Workflow's rules.
- Administrators can manage metadata fields in the Spartan UI.
Feature Highlights Available Here: https://portal.productboard.com/ihvwwrfqsbbpgmeczsoyqmo5/tabs/3-launched
| Title | Release Notes |
| Change column names on Metadata Fields admin page | Column names on the Metadata Fields page are more informative for their purpose. Specifically, tuning metadata fields for relevance is now indicated by the "Boost" and "Boost Priority" columns. These values indicate how much to weight any field for its relevance when doing a Basic search in Reach Engine. |
| Add sorting on metadata field type in admin page | In the new Metadata Admin page it is now possible to sort on a metadata field type |
| Add search boosting slider to metadafields admin | It's now possible to directly change the boosted field search relevance directly on the Metadata Admin page. |
| Add Okta (oauth) Support | A properly configured Reach Engine system will now show an OKTA login modal. Local logins can still be used by clicking the text "SIGN INTO SYSTEM ACCOUNT" at the bottom of the modal. Doing so will change the login screen to the native Reach Engine username and password combination. |
| Metadata Fields Admin Page | If you're a Reach Engine Administrator you now have an improved Metadata Field experience in the updated UI. In the 2.12.0 version of Reach Engine you can Manage all field types except pick list values. The metadata fields page is similar to the other improved admin pages with features like pagination, column sorting, basic search, in-column editing of toggles, and a non intrusive right curtain for easy editing. |
| [REACH-34121] Spartan: Set Thumbnail (Videos) | The Spartan UI now has the ability to set custom video thumbnails. |
| [REACH-31628] Create/Edit Metadata Non Picklist Field Types | Use the "+" button on the Metadata Fields admin page to create and edit metadata fields: |
| [REACH-31624] Admin: Archive Metadata Fields | Metadata fields can be archived. When a field is archived, it is no longer shown to any users in the UI but assets with values set on the field are not removed. In other words, previous values of that metadata field are not deleted but rather it is not possible to update or add new values of that field to any assets. Fields can be archived using the toggle in the "Archived" column Or with the Archive icon in the top left of the Metadata Field management page Selecting either will present a confirmation modal so that fields aren't archived accidentally |

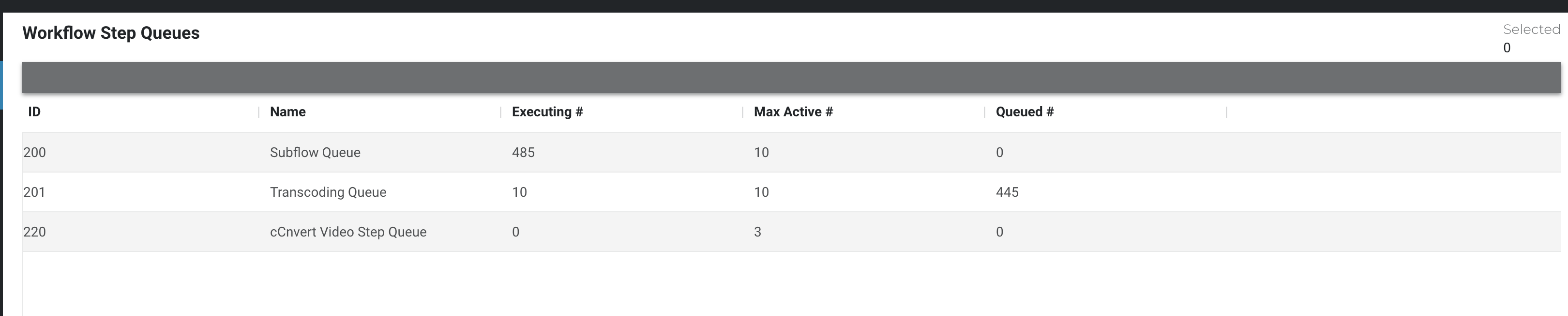

| Provide a way to view workflow step queues | Navigate to /alpha/#/workflow/workflow-step-queues to view the global workflow step that are configured and any activity within them. |
| Subject qualifier Expression text field in the edit workflow modal | Subject qualifier Expression text field shows up in the edit workflow modal only if subjectDOClassName is not empty in the workflow. Subject qualifier Expression text field does not show up in the edit workflow modal if subjectDOClassName is empty in the workflow. |
| Support display and modification of SubjectQualifierExpression in Workflow edit modal |
The edit workflow modal includes a new field that displays and allows modification of a workflows "Subject Qualifier Expression". A Subject Qualifier further refines the attributes on an asset that must be true for the workflow to be displayed to an end user. Subject Qualifiers are written in Spring Expression Language (SPeL) In this example, this workflow will only be displayed to users if they have an asset with the name of The_Drinkers.jpeg. Important Note: Subject Qualifiers are only evaluated when the workflow has a specified subjectDOClassName value in the header. A value like "AssetMaster" for example. |
| Enable default Metadata Form selection in Spartan |
A Metadata form configured in a custom workflow to display in a user input modal will now automatically render the metadata form. The format for specifying a default metadata form in a workflow is as follows: <contextDataDef name="singleMetadataForm" dataType="MetadataForm" label="Metadata Form" userInput="true" defaultDataExpression="{'metadataFormId': 200}"/> Known Issue: A workflow can be executed without all required metadata fields being input. This validation requires the resolution of #87580 |
| Add support for Context Data to Workflow Schedules right Curtain | Scheduled workflows can now be assigned context data to workflow schedule configurations to add optional name/value pairs to any execution. Use this to pass a required value to a scheduled execution or to override a default value. |
| Right Curtain for Watch Folder Config | Use the right curtain on the Watch Folders admin page to configure any aspect of a Workflow Watch Folder. Any new Watch Folders created or existing Watch Folders that are Edited will be updated immediately and Reach Engine will not need to be restarted as was the case in previous versions. |
| Support update of subjectQualifierExpression outside of workflow import | If AdminOverrideFlags are set on a workflow, re-import of the workflow will not update any existing subjectQualifierExpression re-import of a workflow with AdminOverrideFlags=false will replace any existing subjectQualifierExpression with the value from the workflow file |
| Allow for Config changes to be reflected at Runtime | No restarts are required for changes to Watch Folders. All changes are reflected at runtime. |
| Content+Special Video Fields should be visible in Video Curtain | The Asset Info Curtain has been significantly updated to surface more information for Video Assets. At a glance you can now view detailed information for a Video's underlying content. Instead of double clicking on an asset you can simply scroll up and down on the video curtain to view technical details on the Video Asset's Source, Mezzanine, Edit Proxy, Proxy, Thumbnail Video, Thumbnail Image, Live Event. |
Full Changelog
| ID | Work Item Type | Title |
| 64252 | Issue |
Content+Special Video Fields should be visible in Video Curtain
|
| 87631 | Issue |
Support update of subjectQualifierExpression outside of workflow import
|
| 87644 | Issue |
Teal Seam - Channel Islands Kickoff
|
| 82052 | Issue |
Right Curtain for Watch Folder Config
|
| 87579 | Issue |
Add support for Context Data to Workflow Schedules right Curtain
|
| 87607 | Issue |
Enable default Metadata Form selection in Spartan
|
| 87621 | Issue |
Step Queue Management
|
| 87630 | Issue |
Support display and modification of SubjectQualifierExpression in Workflow edit modal
|
| 87731 | Issue |
Subject qualifier Expression text field in the edit workflow modal
|
| 87777 | Issue |
Enable support for Read-Only Metadata Form picklist in the UI
|
| 87781 | Issue |
Provide a way to view workflow step queues
|
| 87588 | Issue |
Address Deployment Preparation failures
|
| 88013 | Issue |
Automation: Update tile-view AAC test
|
| 57219 | Issue |
Admin: Archive Metadata Fields
|
| 57222 | Issue |
Create/Edit Metadata Non Picklist Field Types
|
| 59034 | Issue |
Spartan: Set Thumbnail (Videos)
|
| 65457 | Issue |
Clip Visibility without Parent Video Access
|
| 80500 | Issue |
Metadata Fields Admin Page
|
| 87652 | Issue |
Hide Schedule Workflow Page in 2.10
|
| 87653 | Issue |
Add search boosting slider to metadafields admin
|
| 87682 | Issue |
Add sorting on metadata field type in admin page
|
| 87795 | Issue |
HBO Security Part 2: AWS WAF
|
| 87871 | Issue |
Change column names on Metadata Fields admin page
|
| 87498 | Issue |
Deploy Scheduler via Helm
|
| 87499 | Issue |
Deploy Workflow Runtime via Helm
|
| 87536 | Issue |
Deploy Elasticsearch 7.9
|
| 87547 | Issue |
Create EKS Cluster for Hybrid Search
|
| 87553 | Issue |
Create VPC for Hybrid Search
|
| 87555 | Issue |
Create RabbitMQ Dedicated Cluster
|
| 87561 | Issue |
Standup In House Elements for Hybrid
|
| 87562 | Issue |
AWS Site-To-Site VPN for Hybrid Search
|
| 87581 | Issue |
Create a standalone playbook that can optionally update the WAR/jars for WebApp, Runtime, and Studio.
|
| 87591 | Issue |
Run and debug Automation UI Regression Test
|
| 87593 | Issue |
Automate API using Smart Bear
|
| 87564 | Issue |
Deploy Asset-Publisher in the cloud Hybrid Environment
|
| 87565 | Issue |
Deploy Asset-Indexer for hybrid search
|
| 87566 | Issue |
Deploy Asset-Searcher for Hybrid Search
|
| 87567 | Issue |
Setup ALB for EKS Ingress for Hybrid Search
|
| 87568 | Issue |
Deploy Zipkin for Hybrid Search Env
|
| 87711 | Issue |
QA: Run performance AB test
|
| 87528 | Issue |
Scroll Breaking Change fix in AddAssetsToCollection
|
| 87572 | Issue |
Review and Cleanup Ops/Support Manual
|
| 87502 | Issue |
Server Stubs Generator for Asset-Publisher POC
|
| 82050 | Issue |
Migrate existing configs to new Method
|
| 82064 | Issue |
Add Okta (oauth) Support
|
| 82141 | Issue |
Allow for Config changes to be reflected at Runtime
|
| 82164 | Issue |
Determine Elastic Hosted Solutions
|
| 87497 | Issue |
Deploy WebApp via Helm for Platypi Environments
|
| 87534 | Issue |
Make HBO Secure: Part 1
|
| 87554 | Issue |
Create AWS Elasticsearch Cluster
|
| 87563 | Issue |
Setup EKS "External Services" for Hybrid Search
|
| 87792 | Issue |
Create Hello World Serverless App in Collaborate Environment
|
| 88012 | Issue |
Automation: Update slider-input AAC test
|
| 87829 | Bug |
New Ref Architecture: Internal Server Error on attempt to sort by checkbox metadata column
|
| 87889 | Bug |
Watch Folders- Editing disabled watch folder enables it
|
| 87918 | Bug |
Scheduled workflow name edited to start with underscore doesn't work
|
| 87935 | Bug |
Workflow Step Queue Limits are not Respected
|
| 87583 | Bug |
Okta widget is shown when okta is not configured
|
| 87769 | Bug |
Workflows with no User Input fail to execute from Spartan
|
| 87560 | Bug |
New Ref Arch: Single/Multi Picklist & Small/Large Text & Number searches of 'is not blank' not returning assets
|
| 87928 | Bug |
Categories option located in Users menu
|
| 87608 | Bug |
Watch Folder PUT endpoint not working
|
| 87625 | Bug |
Spartan: Workflow ContextData Java Spring expression results in HTTP 500
|
| 87693 | Bug |
Workflow Download Action makes false assumptions about DataDefs
|
| 87704 | Bug |
2.7 migration metadata fields incorrectly update to deleted
|
| 87890 | Bug |
Workflow Schedules- Yearly Schedule cannot be edited
|
| 87735 | Bug |
Fresh Install 2.11 -- Unable to create proxies with Image Magick
|
| 87549 | Bug |
New Ref Arch: Display of Category info issues in Access and Spartan
|
| 87712 | Bug |
Issue | Not able to search on the new elastic search clusters when feature-toggle.ref-arch.search-service.enabled is True.
|
| 87529 | Bug |
ES FieldName snakecase/camelcase vs underscore
|
| 87552 | Bug |
New Ref Architecture: Sorting non-functional for Created/Updated/Type and various metadata fields
|
| 87595 | Bug |
Breaking API Changes /v1/workflowqueue
|
| 87551 | Bug |
New Ref Architecture: Single/Multiple Picklist metadata values display issues in Access and Spartan
|
